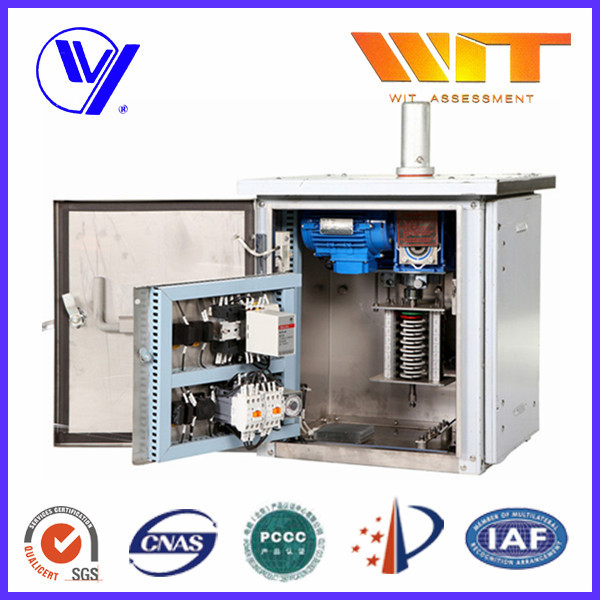

Power Distribution Equipment Disconnector Type Vertical Output Drive Boxes
About Drive Boxes:
1. The fully-enclosed enclosure with perfect sealing is made of high quality
steel sheet by welding,which is applicable to both indoor and outdoor
environments under the complicated weather condition.
2. The DC series-excited motor and the bidirectional driven wormgear feature
a compact structure and high torque transfer .
CJ-6 motor operated mechanism is outdoor motor-driven mechanism, used in disconnector or earthing switch for opening and closing. It can be used in both remote control and motor-driven control or manual operated control in working site. Mechanism operating standard range for rated voltage of motor and control loop is from 85% to 110%. The mechanism is motor driven, torque transmission to mechanism main axis through mechanical speed reducer device. It depends on steel links for disconnector and earthing switch opening and closing in installation. The mechanism is constituted of motor, mechanical speed reducing transmission system, electrical control system and cabinet, etc.
Parameters:
Rated voltage: 220V
Rate of work:370W
Service :OUTDOOR
Box:stainless steel
Rated Torque:40-90mKG
Working form:irreversible
Starting Current: 8A
Running Current:5A
Working time:4-10S
Weight:50-60kG
| Motor voltage |
Control voltage |
Output mode |
Rotation angle |
Time for Switch off and switch on |
Torque |
Motor speed |
Motor power |
| AC380V or AC400V or DC125 or DC110V or AC220V |
AC220V or DC220 or DC110 or DC125V |
Vertical
Shaft
|
70 Degrees to 190 Degrees or
Customized Definition
|
5 Seconds to 10 Seconds or Customized Definition |
1000N |
AC Motor 1400
DC Motor 1500
|
0.55KW |
| AC380V or AC400V or DC125 or DC110V or AC220V |
AC220V or DC220 or DC110 or DC125V |
Horizontal
Shaft
|
70 Degrees to 190 Degrees or
Customized Definition
|
5 Seconds to 10 Seconds or Customized Definition |
600N |
AC Motor 1400
DC Motor 1500
|
0.37KW |
| AC380V or AC400V or DC125 or DC110V or AC220V |
AC220V or DC220 or DC110 or DC125V |
Vertical
Shaft
|
70 Degrees to 190 Degrees or
Customized Definition
|
5 Seconds to 10 Seconds or Customized Definition |
600N |
AC Motor 1400
DC Motor 1500
|
0.37KW |
Other:
Yongde holds the quality policy of being 'the technical forerunner, supreme in quality, supremacy of customers, and innovative progressing', so that our products and services successfully satisfied our users. We warmly welcome friends and customers from home and abroad to contact for exchanges and corporations. We also welcome feedbacks from our user communities.
